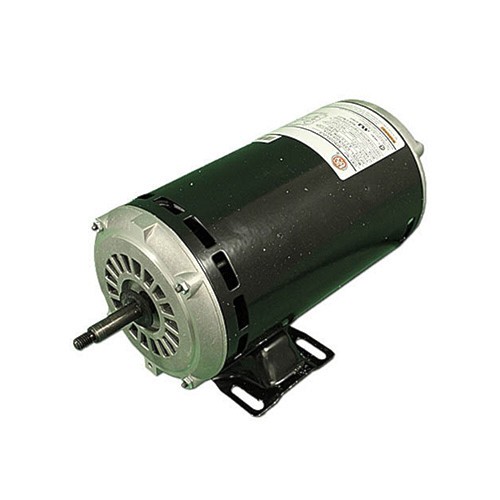

Replacement Pump Motor SPH20FL2CS

Price: $388.00

Part Number:

SPH20FL2CS

Availability:

In Stock

Write a Review

Quantity

Description

Spa pump motor made by Emerson. Runs at 2.0 / 2.5 HP , 230 volt.

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps.

Product Features:

2.0 / 2.5 HP 3450/1725 RPM, 10.5/3.0 amps, 230V 60hz.; 2-Speed
Auto Overload Protection
Non-Reversible -CCW Facing the Shaft; Ball Bearings
48Y Frame; Thru-Bolt mount -Rigid Base
Stainless Steel Shaft

Same Day Shipping If Ordered By

3:00 CST

Monday Thru Friday

$11.95 Flat Rate Shipping
