  1. Tecmark Pressure Switch 3903-BP

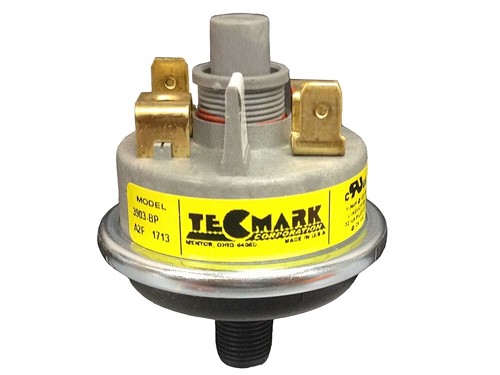

Tecmark Pressure Switch 3903-BP

Tecmark Pressure Switch 3903-BP
Tecmark Pressure Switch 3903-BP
Price: $24.00

Accessories (Total Shown In Cart)

Teflon Thread Seal Tape A05-0265

$2.10

Balboa Water Group Pressure Switch Cable Lead 21223

$17.50

Ask A Product Question

Part Number:

3903-BP

Availability:

In Stock
Write a Review
Tecmark - Pressure Switch 1/8 " NPT 3 Amp, Non-Adjustable
Tecmark Pressure Switch 3903-BP, part of the Series 3000 pressure switches, convert a pressure signal to an electrical output.
In response to a change in pressure, movement of an elastomeric diaphragm opens or closes an electrical circuit based on a predetermined pressure set point.

Specifications:
  • Manufacturer:               Tecmark
  • Model:                          3903-BP
  • Connection:                  1/8" NPT (Plastic Threads)
  • Switch Type:                 SPST (Single Pole Single Throw)
  • Amp Rating:                 3 Amp
  • PSI Rating:                   1.5 PSI (Factory Set Cannot Be Adjusted)
  • Can replace 1 Amp 3000 series pressure switches that are also non-adjustable PSI.
Product Features:
  • Cost Effective
  • Dependable, rated at 100,000 cycle life under full mechanical, electrical, and thermal loads.
  • Elastomeric diaphragm eliminates the need for an oil barrier
  • Insulators designed to protect against direct exposure to live parts
  • Built in over pressure protection designed to eliminate stress on other critical operating components
  • UL Recognized, Canadian and United States, as an operating, limit or safety
Additional Information:
Alternative Part Numbers:
  • 3903-BP, 5-20-0008, TDI3903B, TDI3903BP

Same Day Shipping If Ordered By
3:00 CST
Monday Thru Friday
$11.95 Flat Rate Shipping
