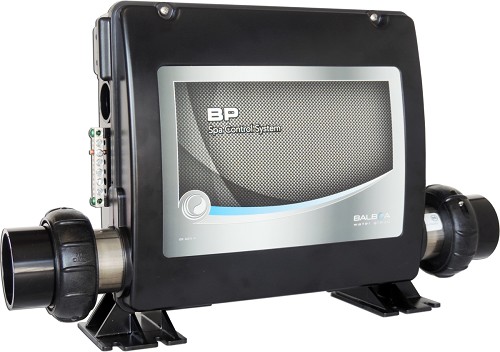

Balboa BP2000G1 5.5 KW Control Box 56377

Balboa BP2000G1 5.5 KW Control Box 56377
Balboa BP2000G1 5.5 KW Control Box 56377
Price: $470.00
2 Review(s)
Ask A Product Question

Part Number:

56377-03

Availability:

Discontinued / No Replacement
This control box has a 5.5 KW heater And Measures 11-1/2" Tall
BP501G1
Balboa Water Group

This System has been discontinued, and is no longer available.
Please Contact Technical Support to help provide a solution.


Standard Features and Operations
Pump 1 Circuit 120V or 240V 1 or 2 Speed Pump
Pump 2 Circuit 120V or 240V 1 or 2 Speed Pump
Pump 3 or Blower Circuit* 120V or 240V 1 or 2 Speed Pump or 1 Speed Blower
Circ Pump Circuit 120V or 240V Circulation (Requires 23 GPM)
Ozone Circuit 120V or 240V Controlled By Filter Cycle
AV Circuit 120V or 240V For Stereo/Video
Light Circuit 12V On/Off
Topside Control - Not Included
Titanium Heater (800INC) 120V or 240V 5.5 KW (240V) - 1.0KW (120V)
Temperature Sensor Heater Mount Auto Reset
Overheat Sensor Heater Mount Auto Reset
Wi-Fi Ready   Requires Module 50350
Warranty   1 Year

*Can do one or the other but not both

If a 24 hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos or Waterway Tiny Might pumps do not perform at this rate and cannot be used. The Aqua Flo Circ- Master is a good choice (linked below)

Same Day Shipping If Ordered By
3:00 CST
Monday Thru Friday
$11.95 Flat Rate Shipping
