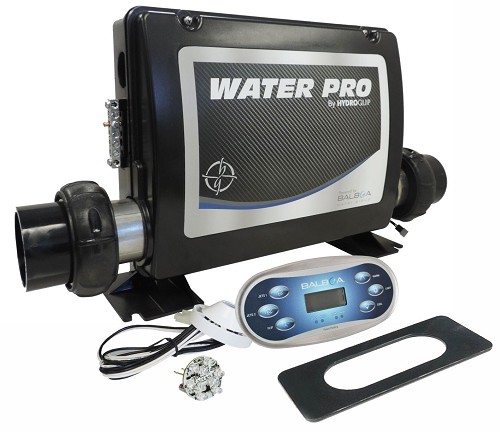

Balboa® BP5 5.5 KW Control Box Bundle With TP600 Topside Control 50-BP5-600-55-K

Balboa® BP5 5.5 KW Control Box Bundle With TP600 Topside Control 50-BP5-600-55-K
BP5 5.5 KW Control Box Bundle With TP600 Topside Control 50-BP5-600-55-K
Balboa Water Group® Balboa Water Group®
Price: $525.00

Accessories (Total Shown In Cart)

Ask A Product Question

Part Number:

50-BP5-600-55-K

Availability:

In Stock
Free Shipping.
Write a Review
CORDS ARE SOLD SEPARATELY

Instruction Manual


This is a programmable system that can be configured several different ways.

NOTE- All circuits ship at 220 volts, please refer to instructions to convert a circuit to 120 volts.

In Setups 1-15, Pump 1, Circ Pump and Ozone must be the same voltage. In Setups 16-20, Pump 2 (when used), Circ Pump and Ozone must be the same voltage.

Standard Features And Operations
Pump 1  120V or 240V 1 or 2 Speed Pump
Pump 2  120V or 240V 1 or 2 Speed Pump
Pump 3 or Blower* 120V or 240V1 Speed
Circ Pump Circuit 120V or 240V Circulation (Requires 23 GPM)
Ozone Circuit 120V or 240V Controlled By Filter Cycle
AV Circuit 120V or 240V For Stereo/Video
Light Circuit 12V LED Color Rotation
Topside Control - Includes TP600 Topside W/ Adapter Plate (9" x 4")
Titanium Heater (800INC) 120V or 240V 5.5KW (240V) - 1.0KW (120V) (Fixed)
Temperature Sensor Heater Mount Auto Reset
Overheat Sensor Heater Mount Auto Reset
Wi-Fi Ready   Requires Module 50350
Warranty   2 Year

*Can do one or the other but not both

If a 24 hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos or Waterway Tiny Might pumps do not perform at this rate and cannot be used. The Aqua Flo Circ- Master is a good choice (linked below)
