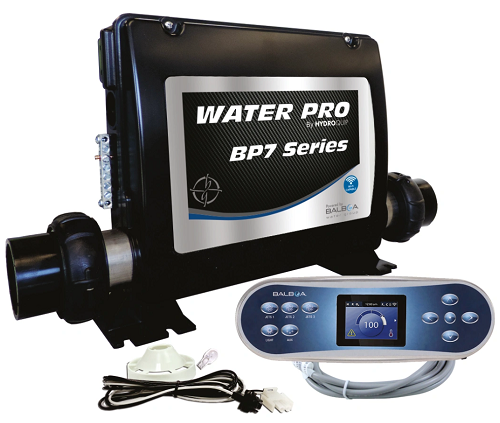

Balboa® BP7 5.5 KW Control Box Bundle With TP700 Topside Control 50-BP7-700-55-K

Balboa® BP7 5.5 KW Control Box Bundle With TP700 Topside Control 50-BP7-700-55-K
BP7 Control Box Bundle With TP700 Topside Control 50-BP7-700-40-K
Balboa Water Group® Balboa Water Group®
Price: $525.00

Accessories (Total Shown In Cart)

Ask A Product Question

Part Number:

50-BP7-700-55-K

Availability:

In Stock
Free Shipping.
Write a Review
CORDS ARE SOLD SEPARATELY

Hot Sheet For This Control box.

Topside Control User Guide .

This is a programmable system that can be configured several different ways. The default is "Setup 21" which is setup to run (1) 2speed pump. Instructions to change the settings are included. Requires using the included Y Splitter if configuring PUMP4
NOTE- All circuits ship at 220 volts, please refer to instructions to convert a circuit to 120 volts.

Standard Features And Operations
Pump 1 Circuit 120V or 240V 1 or 2 Speed Pump
Pump 2 Circuit 120V or 240V 1 or 2 Speed Pump
Pump 3 Circuit 120V or 240V 1 Speed Pump
Pump 4 Circuit 120V or 240V 1 Speed Pump
Circ Pump Circuit 120V or 240V Circulation (Requires 23 GPM)
Ozone Circuit 120V or 240V Controlled By Filter Cycle
AV Circuit 120V or 240V For Stereo/Video
Light Circuit 12V On/Off
Topside Control
Includes TP700 Topside - 10" x 3.5"
Titanium Heater (800INC) 120V or 240V 5.5KW (240V) - 1.0KW (120V)
Temperature Sensor Heater Mount Auto Reset
Overheat Sensor Heater Mount Auto Reset
Wi-Fi Ready   Requires Module 50350
Warranty   2 Year

If a 24 hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos or Waterway Tiny Might pumps do not perform at this rate and cannot be used. The Aqua Flo Circ- Master is a good choice (linked below)

Same Day Shipping If Ordered By
6:00 EST | 5:00 CST | 4:00 MST | 3:00 PST
Monday Thru Friday
$10.95 Flat Rate Shipping
