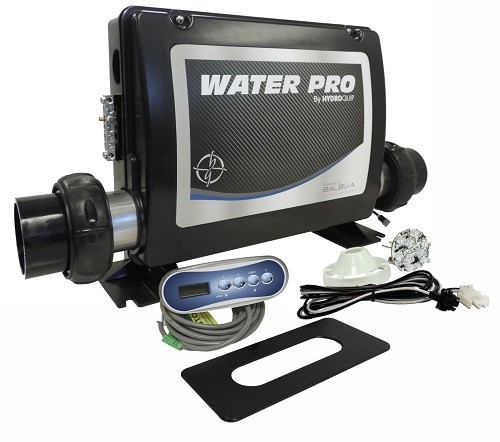

Balboa® BP5 5.5 KW Control Box Bundle With TP200 Topside Control 50-BP5-20E-55-K

Balboa® BP5 5.5 KW Control Box Bundle With TP200 Topside Control 50-BP5-20E-55-K
BP5 5.5 KW Control Box Bundle With TP200 Topside Control 50-BP5-20E-55-K
Balboa Water Group® Balboa Water Group®
Price: $525.00

Accessories (Total Shown In Cart)

Ask A Product Question

Part Number:

50-BP5-20E-55-K

Availability:

In Stock
Free Shipping.
Write a Review
CORDS ARE SOLD SEPARATELY

This is a programmable system that can be configured several different ways.

NOTE- All circuits ship at 220 volts, please refer to instructions to convert a circuit to 120 volts.

In Setups 1-15, Pump 1, Circ Pump and Ozone must be the same voltage. In Setups 16-20, Pump 2 (when used), Circ Pump and Ozone must be the same voltage.

Standard Features And Operations
Pump 1  120V or 240V 1 or 2 Speed
Pump 2  120V or 240V 1 or 2 Speed
Blower OR Pump3 120V or 240V1 Speed
Circ Pump Circuit 120V or 240V Circulation (Requires 23 GPM)
Ozone Circuit 120V or 240V Controlled By Filter Cycle
AV Circuit 120V or 240V For Stereo/Video
Light Circuit 12V LED Color Rotation
Topside Control - Includes TP200T Topside W/ Adapter Plate (9" x 4")
Titanium Heater (800INC) 120V or 240V 5.5KW (240V) - 1.0KW (120V) (Fixed)
Temperature Sensor Heater Mount Auto Reset
Overheat Sensor Heater Mount Auto Reset
Wi-Fi Ready   Requires Module 50350
Warranty   2 Year

If a 24 hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos or Waterway Tiny Might pumps do not perform at this rate and cannot be used. The Aqua Flo Circ- Master is a good choice (linked below)
