Key |
Complete 2" Executive 56 Frame Wetends |
Part # |
|---|---|---|
14 |
1.0 HP Complete 2" 56 Frame Wetend. ( OD measurements inlet & outlet is 3") |
|
14 |
2.0 HP Complete 2" 56 Frame Wetend. ( OD measurements inlet & outlet is 3") |
|
14 |
3.0 HP Complete 2" 56 Frame Wetend. ( OD measurements inlet & outlet is 3") |
|
14 |
4.0 HP Complete 2" 56 Frame Wetend. ( OD measurements inlet & outlet is 3") |
|
14 |
5.0 HP Complete 2" 56 Frame Wetend. ( OD measurements inlet & outlet is 3") |
|
Key |
Complete 2-1/2" Executive 56 Frame Wetends |
Part # |
15 |
1.0 HP Complete 2-1/2" 56 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3") |
|
15 |
2.0 HP Complete 2-1/2" 56 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3") |
|
15 |
3.0 HP Complete 2-1/2" 56 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3") |
|
15 |
4.0 HP Complete 2-1/2" 56 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3") |
|
15 |
5.0 HP Complete 2-1/2" 56 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3") |
|

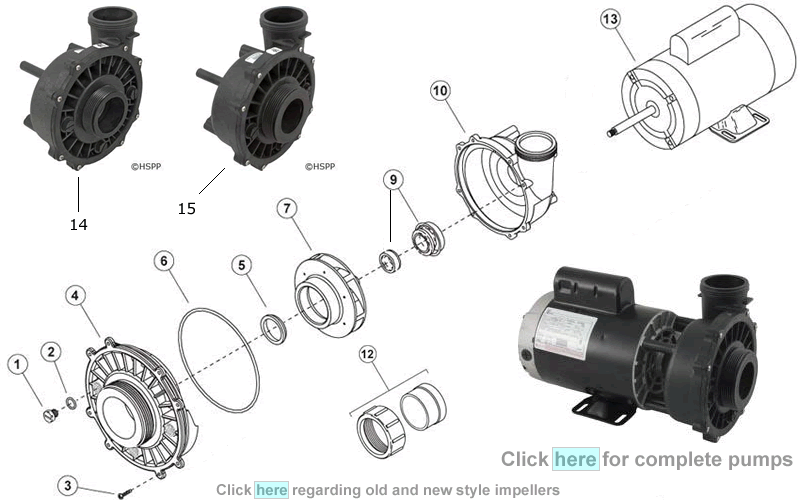

Key |
Executive 56 Frame Wetend Parts |
Part # |
1 |
Drain Plug |
|
1a |
Waterway Barb Adapter 3/8" Barb x 1/4" N.P.S. M. (not shown) |
|
2 |
Drain Plug O-Ring
|
|
3 |
Wetend Faceplate Screw |
|
4 |
Executive 48/56 Frame Faceplate Frame 2" |
|
| 4 | Executive 48/56 Frame Faceplate Frame 2.5" |
|
5 |
Executive 48/56 Frame Wear Ring 1.0, 2.0 & 3.0 HP |
|
5 |
Executive 48/56 Frame Wear Ring 4.0 & 5.0 HP |
|
6 |
Executive 48/56 Frame Faceplate O-Ring |
|
7 |
Executive 48/56 Frame 1.0 HP Impeller |
|
7 |
Executive 48/56 Frame 2.0 HP Impeller |
|
7 |
Executive 48/56 Frame 3.0 HP Impeller |
|
7 |
Executive 48/56 Frame 4.0 HP Impeller |
|
7 |
Executive 48/56 Frame 5.0 HP Impeller |
|
9 |
AS-1000 Shaft Seal |
|
10 |
Executive 56 Frame Volute W/Inserts |
|
12 |
Pump Union Assembly 2" |
|
12 |
Pump Union Assembly 2.5" |
|
13 |
Replacement Motors |
