THIS PUMP AND ITS PARTS ARE OBSOLETE, CLICK PART NUMBERS BELOW FOR ALTERNATIVE OPTIONS |
|---|
|
|---|

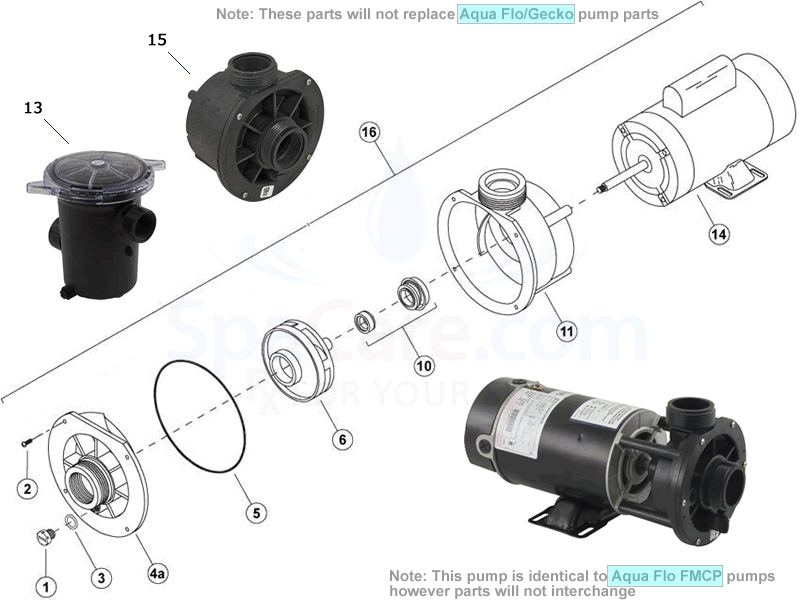

Key |
Complete Center Discharge 48 Frame Wetends |
Part # |
|---|---|---|
15 |
3/4 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 2-3/8 inches) |
|
15 |
1.0 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 2-3/8 inches) |
|
15 |
1.5 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 2-3/8 inches) |
|
15 |
2.0 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 2-3/8 inches) |
|
Key |
Complete Center Discharge 48 Frame Wetend Parts |
Part # |
1 |
Drain Plug |
|
1a |
Waterway Barb Adapter 3/8" Barb x 1/4" N.P.S. M. (not shown) |
|
2 |
Wetend Faceplate Screw
|
|
3 |
Drain Plug O-Ring |
|
4a |
Center Discharge Faceplate |
|
| 4b | Center Discharge Faceplate (For Bath Pump) |
|
5 |
Center Discharge Faceplate O-Ring |
|
6 |
Center Discharge 3/4 HP Impeller |
|
6 |
Center Discharge 1.0 HP Impeller |
|
6 |
Center Discharge 1.5 HP Impeller |
|
6 |
Center Discharge 2.0 HP Impeller |
|
10 |
AS-1000 Shaft Seal |
|
11 |
Center Discharge 48 Frame Volute W/Inserts |
|
12 |
Pump Union Assembly 1.5" x 1.5" |
|
13 |
Center Discharge Pump 6" Trap W/Basket |
|
14 |
Replacement Motors |
|
| Key | Complete Center Discharge Pumps |
Part # |
16 |
Waterway Center Discharge 3/4 HP 120 Volt Pump |
|
16 |
Waterway Center Discharge 1.0 HP 120 Volt Pump |
|
16 |
Waterway Center Discharge 1.5 HP 120 Volt Pump |
|
16 |
Waterway Center Discharge 1.5 HP 220 Volt Pump |
|
16 |
Waterway Center Discharge 2.0 HP 220 Volt Pump |
