*Need to determine weather you have a 48 or 56 frame bracket motor? (click here)

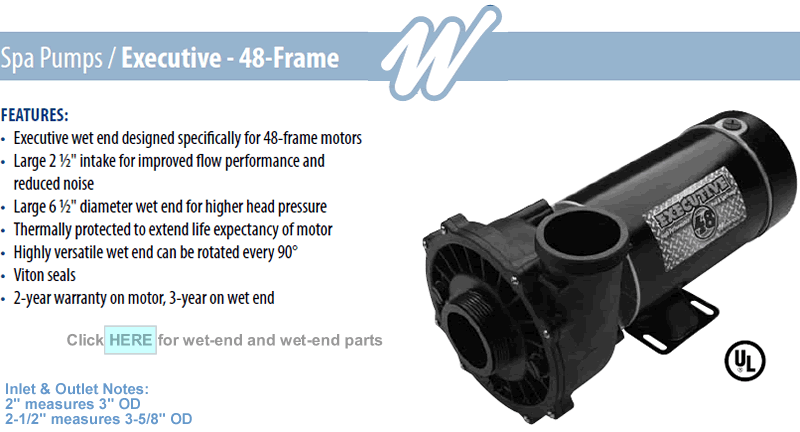

| Waterway 48 Frame Executive Pumps |
|---|
|
|---|
HP |
Speed |
Inlet/Outlet Size |
Volts |
Amps (High) |
Amps (Low) |
Part # |
|---|---|---|---|---|---|---|
1.0 HP |
2 Speed |
2" x 2" OD = 3 inches |
115 |
11.0 |
2.9 |
|
1.5 HP |
2 Speed |
2" x 2" OD = 3 inches |
115 |
16.4 |
4.4 |
|
1.5 HP |
2 Speed |
2" x 2" OD = 3 inches |
230 |
8.0 |
2.6 |
|
2.0 HP |
2 Speed |
2" x 2" OD = 3 inches |
230 |
10.5 |
2.6 |
|
3.0 HP |
2 Speed |
2" x 2" OD = 3 inches |
230 |
8.5 |
2.8 |
|
4.5 HP |
2 Speed |
2" x 2" OD = 3 inches |
230 |
12.0 |
3.5 |
|
1.0 HP |
2 Speed |
2" x 2-1/2" OD = 3" x 3-5/8" |
115 |
11.0 |
2.9 |
|
1.5 HP |
2 Speed |
2" x 2-1/2" OD = 3" x 3-5/8" |
115 |
16.4 |
4.4 |
|
1.5 HP |
2 Speed |
2" x 2-1/2" OD = 3" x 3-5/8" |
230 |
8.0 |
2.6 |
3420620-13 |
2.0 HP |
2 Speed |
2" x 2-1/2" OD = 3" x 3-5/8" |
230 |
10.5 |
2.8 |
|
3.0 HP |
2 Speed |
2" x 2-1/2" OD = 3" x 3-5/8" |
230 |
8.5 |
10.5 |
|
4.5 HP |
2 Speed |
2" x 2-1/2" OD = 3" x 3-5/8" |
230 |
12.0 |
3.5 |
 |
|---|
