  2. Waterway Executive 48 Frame Wet-ends

< Back to Spa Parts Catalog

*Need to determine weather you have a 48 or 56 frame bracket motor? (click here)





Key
Complete 2" Executive 48 Frame Wetends
Part #
14
1.0 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 3 inches)
14
1.5 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 3 inches)
14
2.0 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 3 inches)
14
3.0 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 3 inches)
14
4.0 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 3 inches)
14
4.5 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 3 inches)
14
5.0 HP Complete 2" 48 Frame Wetend. ( OD inlet & outlet is 3 inches)
Key
Complete 2-1/2" Executive 48 Frame Wetends
Part #
15
1.0 HP Complete 2-1/2" 48 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3")
15
1.5 HP Complete 2-1/2" 48 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3")
15
2.0 HP Complete 2-1/2" 48 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3")
15
3.0 HP Complete 2-1/2" 48 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3")
15
4.0 HP Complete 2-1/2" 48 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3")
15
4.5 HP Complete 2-1/2" 48 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3")
15
5.0 HP Complete 2-1/2" 48 Frame Wetend. ( Inlet OD measurement 3-5/8" & outlet is 3")

Key

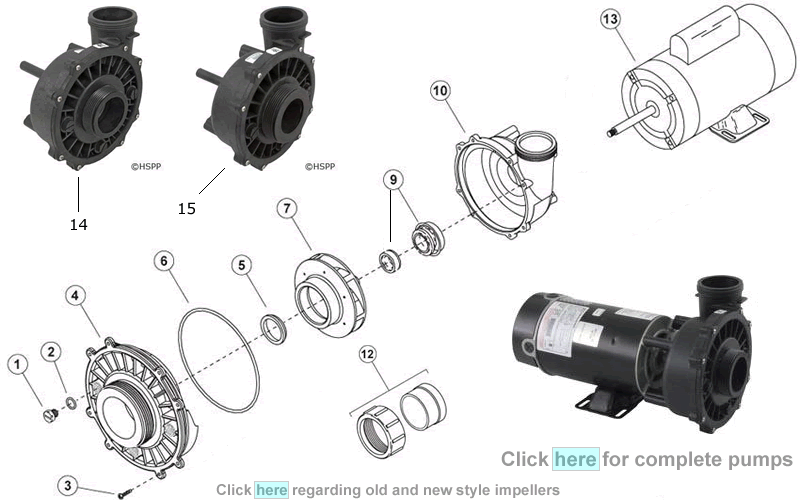

Executive 48 Frame Wetend Parts
Part #
1
Drain Plug
1a
Waterway Barb Adapter 3/8" Barb x 1/4" N.P.S. M. (not shown)
413-1201
2
Drain Plug O-Ring
3
Wetend Faceplate Screw
4
Executive 48/56 Frame Faceplate Frame 2"
4
Executive 48/56 Frame Faceplate Frame 2.5"
5
Executive 48/56 Frame Wear Ring 1.0, 2.0 & 3.0 HP
5
Executive 48/56 Frame Wear Ring 4.0 & 5.0 HP
6
Executive 48/56 Frame Faceplate O-Ring
7
Executive 48/56 Frame 1.0 HP Impeller
7
Executive 48/56 Frame 2.0 HP Impeller
7
Executive 48/56 Frame 3.0 HP Impeller
7
Executive 48/56 Frame 4.0 HP Impeller
7
Executive 48/56 Frame 5.0 HP Impeller
9
AS-1000 Shaft Seal
10
Executive 48 Frame Volute W/Inserts
12
Pump Union Assembly 2"
12
Pump Union Assembly 2.5"
13
Replacement Motors
